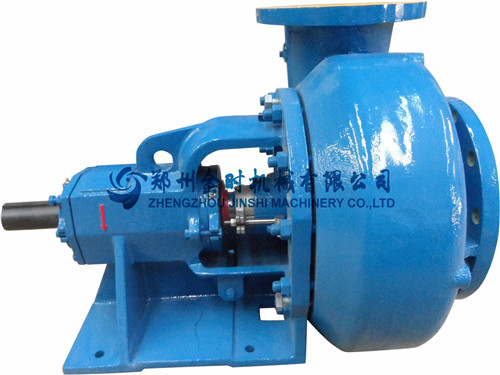

JDSB10×8×14 Центробежный шламовый насос

время：2019-05-27



1. Usage and Application Range

JDSB series centrifugal sand pump includes virtually all of the features of the JDSB series pumps.JDSB series pumps are more compact in design and can be adapted for hydraulic motor drive.These features make .JDSB series pump ideal for use in applications such as oilfield frac trucks as well as blending and pump charging for water well drilling applications.

All parts for these pumps are identical to the JDSB series pump except for the frame and shaft.The frame and shaft have been shortened 4" to reduce the length of the pump.When space is a premium and prime mover options are limited, the JDSB series pump is the pump of choice.

There are 8 models for choosing,JDSB3×2×13,JDSB4×3×13,JDSB5×4×14,JDSB6×5×11,JDSB6×5×14,JDSB8×6×11,JDSB8×6×14

and JDSB10×8×14.

2. Pump Features

The Series Centrifugal Sand Pump has these features:

(1) Open impeller,apply to transport high viscosity drilling liquid.

(2) Combination seal for a long service life.

(3) Use universal bearing houses and bearings,convenient to maintain and cut the costs.

(4) The major parts are made from antiwear nodular iron,and long service life.

3. Parameters

Model	JDSB10×8×14	JDSB8×6×14	JDSB8×6×11	JDSB6×5×14	JDSB6×5×11	JDSB5×4×14	JDSB4×3×13	JDSB3×2×13
Discharge capacity	260～300 m³/h	240～260 m³/h	220～240 m³/h	200～220 m³/h	120～200 m³/h	80～120 m³/h	60～80 m³/h	50～60m³/h
Pump Head	28~33	28～33m	24～28m	24～28m	24～28m	24～28m	22～28m	22～28m
Efficiency	65%	65%	65%	65%	65%	65%	65%	65%
Motor power	75/90 kW	55/75 kW	37/45 kW	37/45/55 kW	30/37/45 kW	18.5/22/30 kW	11/15 kW	7.5/11 kW
Motor speed	1450/1750rpm	1450/1750rpm	1450/1750rpm	1450/1750rpm	1450/1750rpm	1450/1750rpm	1450/1750rpm	1450/1750rpm
Inlet diameter	10″	8″	8″	6″	6″	5″	4″	3″
Outlet diameter	8″	6″	6″	5″	5″	4″	3″	2″
